Universal Test WDW Computer Control Material Tensile Testing Machine For PVC Material Tensile Testing Machine

Universal Test WDW Computer Control Material Tensile Testing Machine For PVC Material Tensile Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description

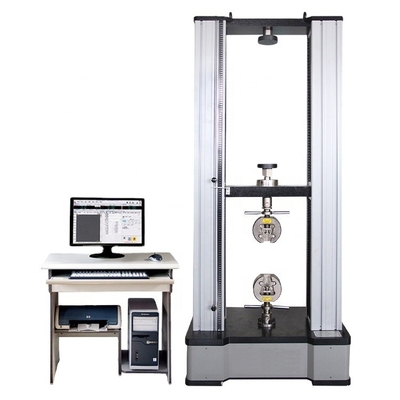

WDW Computer Control Universal Testing Machine for PVC Material Tensile Tester
Product Description
Application

This series material testing machine product group was primarily developed for
standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.

Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM, D3479, ASTM E517,ASTM, D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
200kn 300kn floor-standing computerized electronic universal testing machine 200kn electronic universal testing machine 200kneletromechanical universal testing machine 200kn tensile test 200kn univeral tensile testing machine 200kn universal testingmachine
Safety Device

Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting, Emergency stop device: handing emergencies.
Specification
Items
Model
Model
WDW-200E
WDW-300E
WDW-500E
WDW-600E
Structure
4 Column and 2 Ball Screw
Max. Load(kN)
200
300
500
600
Tensile space(mm)
700
700
800
800
650
Compression space(mm)
1100
1100
800
800
Effective test width(mm)
600
600
700
700
950*660*2000
Size(mm)
1102*870*2395
1450*1140*2730
680
Host Weight (kG)
2200
4000
Power Supply
380V/50-60Hz
Company Profile
Packing & Delivery
Standard exporting case
