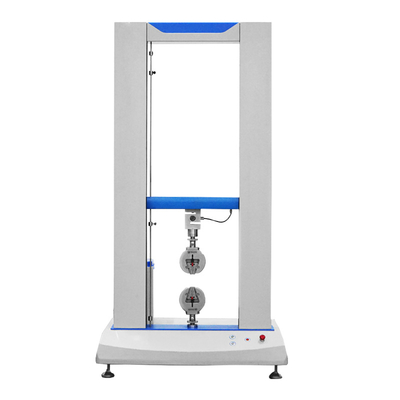

HD-B604B-S tensile stress testing machine is suitable for plastic film, composite film, soft packaging materials, adhesive tape, rubber, paper and other products of tensile, peeling, tearing, heat sealing, bonding, compression, bending and other mechanical properties testing and analysis research, Test and analysis on the mechanical properties of corrugated cartons, honeycomb board boxes, flexible packaging bags, plastic drums (edible oil, mineral water), paper drums, paper cans, containerized containers (IBC drums), hollow containers, etc.
Standard:
|
Item |
Description |
|
Frame capacity |
100KG-2T |
|
Load cell brand |
Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional) |
|
Load accuracy |
0.5% F.S |
|
Control system |
PC with windows 7 system |
|
Motor |
Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
|
Force reading |
kgf, Ibf, N, KN, T etc |
|
Vertical test space |
1200mm including fixture |
|
Horizontal test space |
≤400mm |
|
Test speed |
0.1~500mm/min (adjustable) |
|
Software |
TM 2101 |
|
Curves display |
Load- elongation, Elongation-time, Time-elongation, Stress-strain |
|
Data display |
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
|
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
APPLICATIONS:
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Softwarecan issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Haida can provide a variety of fixtures customization services to meet all customers testing needs
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping
Test machine are covered with air bubble film before put them into the wooden case.There are different modes of transportation to choose from: sea, air and land.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
