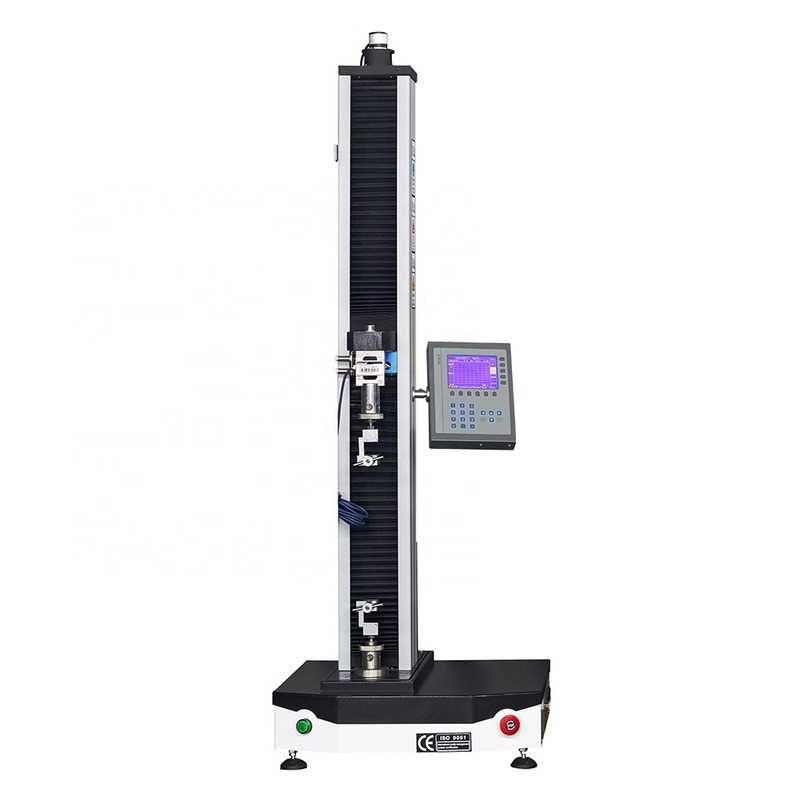

Digital Display Single Electronic Strength Testers Column Electromechanical Paper Tensile

1.0 Sets
MOQ
Digital Display Single Electronic Strength Testers Column Electromechanical Paper Tensile
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Model Number: ETM
Power: Electronic
Max. Load: 5KN
Structure: Single Column
Load Accuracy: Class 1 (class 0.5 Optional)
Load Range: 1%-100% FS (0.4%-100% FS Optional)
Crosshead Travel Space(mm): 1100
Tensile Space(mm): 900
Control Method: Digital Display
Power Supply: AC220V±10%,50Hz
Weight: Around 110 Kg
Certification: CE, ISO
Basic Infomation
Certification: CE, ISO
Model Number: ETM
Payment & Shipping Terms
Packaging Details: Inner: Water-proof plastic film packagingOuter: Plywood box for overseas transportation
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description










One Column ETM-3 3000N Universal Test Equipment Single Column Universal Test Machine Paper Material Tensile Strength Tester







1.Application The single column series testing machine is designed and produced for the tensile, compression, peel,and bending tests of the rubbers, plastics, thin films or other materials. And it is also used for the performance tests of the thin metal, wire, fiber, elastomer, foam materials.

 2.Technical Parameters
Model
ETM
Max. load
1KN  2KN  3KN 5KN
Structure
Single column
Control method
Computer control
Load accuracy
Class 1
Load range
1%-100% FS
Deformation measurement range
0.2%-100%
Displacement Resolution
0.01mm
Test speed
0.05-1000mm/min
Crosshead travel space(mm)
1100
Tensile space(mm)
900
Power supply
AC220V±10%,50Hz
Grips
Corrugated grip
Dimension
450*400*1680mm
Extensometer
Electronic Extensometer optional
Weight
Around 110 kg
