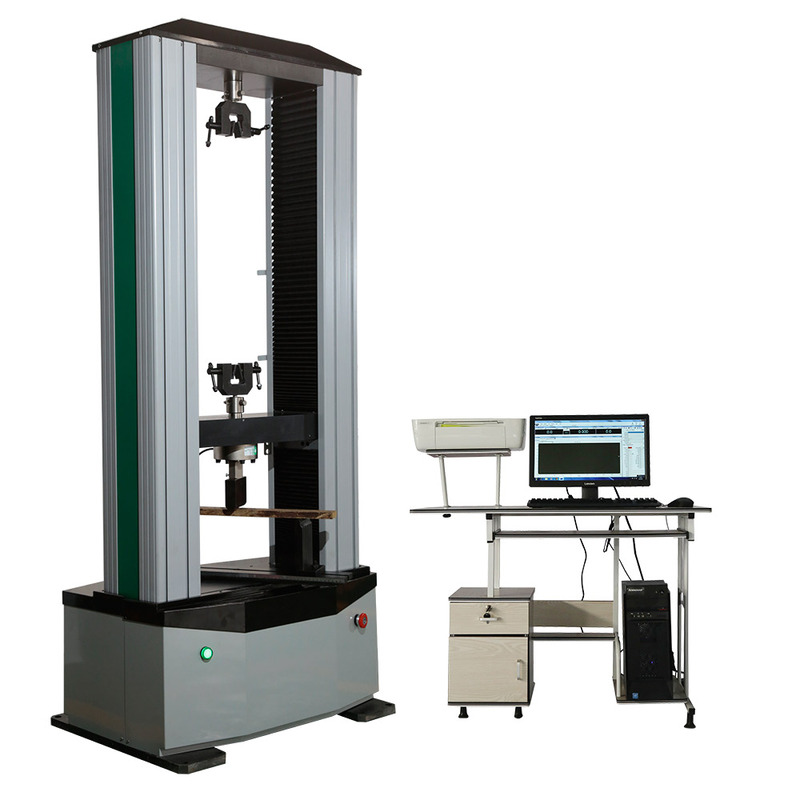

Name: ETM-100kn Computerized Universal 3 point bending Test Machine
Brand: ETM-100kn Computerized Universal 3 point bending Test Machine
SKU: ETM
Price: 6 USD
Availability: InStock
Rating: 4.9 (168 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year, 12 Months

Customized Support: OEM

Model Number: ETM

Power: Electronic

Product Name: Universal Testing Machine

Application: Compression,bending,tension

Certificate: CE ISO

Measuring Range: 1%-100% FS

Accuracy: 1 Grade/0.5 Grade

Certification: CE

Basic Infomation

Certification: CE ISO, CE

Model Number: ETM

Payment & Shipping Terms

Packaging Details: polywood package. ETM-100kn Computerized Universal 3 point bending Test Machine

Supply Ability: 100 Set/Sets per Month

Product Description

ETM-100kn Computerized Universal 3 point bending Test Machine

1.Technical Parameters

Model	ETM-5kN ETM-10kN ETM-20kN	ETM-30kN ETM-50kN	ETM-100kN	ETM-200kN ETM-300kN	ETM-500kN ETM-600kN
Max. Load force	5kN 10kN 20kN	30kN 50kN	100kN	200kN 300kN	500kN 600kN
Crosshead Travel(mm)	1100mm	1100mm	1100mm	1100mm	1100mm
Effective tensile space(mm)	700mm	700mm	700mm	400mm	400mm
Effective Test width	400mm	450mm	500mm	600mm	650mm
Crossbeam travel speed(mm/min)	0.001-1000	0.001-500	0.001-500	0.001-300	0.001-300
Load resolution	1/300000
Tensile grip	Manual wedge tensile fixture (hydraulic Automatic Clamping Fixture Optional)
Round specimen clamping range(mm)	4-9,(9-14,14-21optional)
Flat specimen clamping range(mm)	0-7,(7-14,14-21optional)
Compression plate(mm)	100x100mm
Electronic extensometer	YUU10/50(optional)
Large deformation extensometer	DBX-800(optional)

2.Application Microcomputer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling and tearing.

ETM-100kn Computerized Universal Force Tester for 3 Point Bending Test Machine 3.Features 2.1 Computer + Software control and display 6 kinds test curves: Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time 2. 2 Can be installed extensometer to test deformation of rubber or metal material 2.3 Can do high temperature test by high temperature oven and furnace 2.4 Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures 2.5 Can be customized height, width, and follow any test standard or customer request

2.6 ETM-100kn Computerized Universal Force Tester for 3 Point Bending Test Machine

2.7 ETM-100kn Computerized Universal 3 point bending Test Machine
