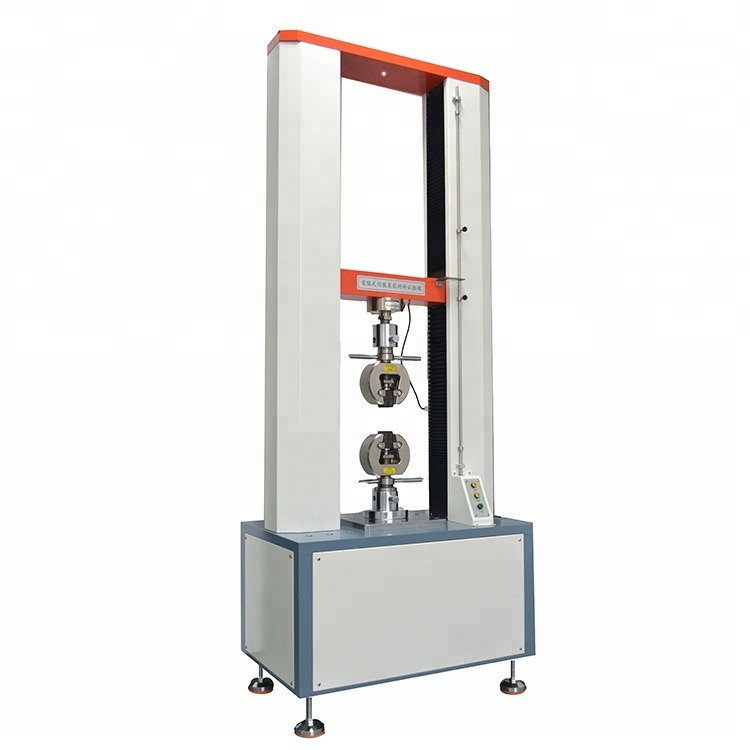

Factory direct tensile strength testing machine/Universal tensile test machine
Products Description
Universal tensile test machine is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.
Application Industries
Universal tensile strength testing machine is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features of Universal tensile test machine
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highly improve the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Specifications of Universal testing machine
|
Items |
Tensile Testing Machine |
|
Capacity |
100. 200. 500. 1000. 2000. 3000. 5000. 10000kg |
|
Unit Switchover |
G, KG, N, LB |
|
Display Device |
LCD or PC / Tensile Testing Machine |
|
Resolution |
1/250,000 |
|
Accuracy |
±0.5% |
|
Max. Stroke |
1000mm (including fixture) |
|
Test Speed |
0.1-500mm/min (adjustable ) |
|
Motor |
Panasonic Servo Motor |
|
Screw |
High Precise Ball Screw |
|
Elongation Accuracy |
0.001mm |
|
Power |
AC220V, 50HZ or customized |
|
Weight |
Approx.500kg / Tensile Testing Machine |
|
Accessories parts |
tensile clamp, computer system, English software CD, operation CD, user manual |
Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
Frequently Use Tensile Grips:
Frequently Use 3/4 Point Bend Test Grips:
Frequently Use Compression Test Grips:
More details? Contact us to consult
Professional designed software. PC to view test results, analysis of data and graph!
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
ZONHOW Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
