ISO 1167 ASTM D1598 Plastic PVC Pipe Hydrostatic Pressure and Burst Tester Testing Machine
1. Application:

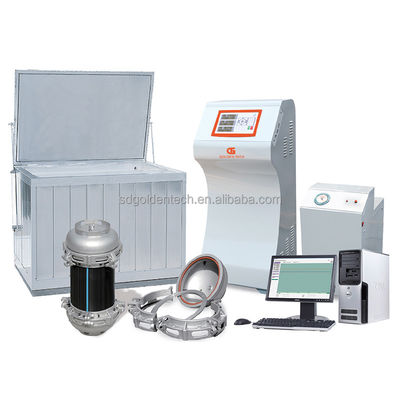

XGNB Series Hydrostatic Pressure and Burst Testing Machine is used to determine the long-term hydrostatic strength and instant blasting of HDPE, PVC, PE, PPR, ABS and other plastic pipes. It conforms to the test standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.
2. Testing Standard:
ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.
3. Main Technical Parameters:
|
Model |
XGNB-10 |
XGNB-16 |
XGNB-25 |
|
Max pressure |
10MPa (100Bar) |
16MPa (160Bar) |
25MPa (250Bar) |
|
Resolution of pressure testing |
0.001MPa, 0.01Bar |
||
|
Accuracy of pressure control |
-1% ~ +2% |
||
|
Test station |
3 stations (standard supply) or more stations can be customized |
||
|
Testing pipe diameter |
Φ16-Φ2000mm |
||
|
Control range of water temperature |
Room temperature to 95°C or 15°C to 95°C |
||
|
Time range |
0 - 10000h |
||
|
End caps material |
carbon steel / stainless steel |
||
