Energy supply pipe Hebei tianxianghao hydrostatic pressure testing machine for fiberglass pipe production line

1 set
MOQ
Energy supply pipe Hebei tianxianghao hydrostatic pressure testing machine for fiberglass pipe production line
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Energy & Mining
Showroom Location: Viet Nam, India, Malaysia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: PLC
Condition: New
Type: Pipe Beveling Machine
Pipe Material: Carbon Steel
Application: Energy Supply Pipe
Production Capacity: 3 - 6 Sets
Voltage: 220/380/415/420/440V
Power: 55KW
Dimension(L*W*H): Customer's Land Size
Weight: 200 Kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Product Name: Welded Steel Pipe Making Machine
Pipe Shape: Shaped Tube
Material: Q235, X70,X80 Carbon Steel, Carbon Steel
Useful Life: 30 Years
After-sell Service: Field Installation,commissioning,Engineer Available To Service Abroad
Pressure Holding Time: As Required
Pipe Diameter: Customized
Color: Customer's Requirement
Keyword: Spiral Mill
After Warranty Service: Field Maintenance And Repair Service
Basic Infomation
Payment & Shipping Terms
Packaging Details: according to customer"s requirements
Product Description
Product Description


A Professional factory directly supply with best price, quality & after sale service

This equipment we can design and produce as per customer"s special requirement.

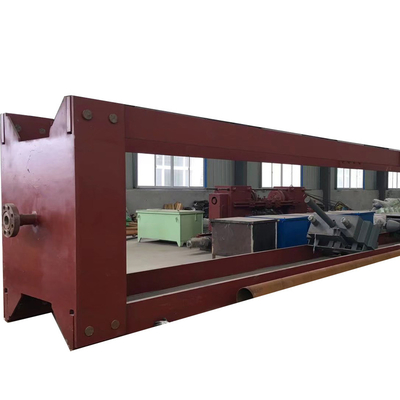

It is used for kinds of steel pipe pressure-bearing and testing . It adopts two lifted rollers to hold the tested steel pipe, using the thrust of master cylinder to press the pipe between the thrust plate and the pressure plate,so that the pipe two ends can be sealed(end face seal or radial seal). Based on high-volume low-pressure pump to complete thewater injection, and then use high-pressure pump to complete high pressure test.Hydraulic steel pipe Hydrostatic Testing Machine is one of our main products for steel pipe pressure test and eliminating the internal stress on the pipe.
Our hydrostatic testing machine products have been put to operation in many factories and have received favorable reputation andrecognition from the clients for advanced technologies and reliable performance.

Specification
1. The hydraulic test head moves forward and backward, sealing or releasing the tube.
2. Hydrostatic testing machine is controlled by PLC.
3. The test result is written down and printed automatically.
4. The machines are designed according to customer requests, with special attention to the technical specifications about tube dimensions (diameter and length), maximum pressure for the hydrostatic test and reduction of costs and processing time.
5. The technical office is able to develop machines for any tube dimensions and all the auxiliary devices for improving the production.

Main testing process:
1. Adjust the moving beam according to the pipe length.
2. The pipe is measured and loaded by the loading chains.
3. The clamp device is lifted by cylinders to clamp the pipes.
4. The double end sockets move to seal the pipes.
5. Preliminary sealed booster
6. Filling water and outlet air.
7. Air release valve is closed and pressure boosting。
8. Pressure holding。
9. Pressure relief
10. Pipe is taken out of end socket.
11. Loosen the clamping
12. Unloading
13. Length measuring and cleaning.

Product Display



Contact us
Company Profie



A professional pipe machine manufacturer

Hebei Tianxianghao Metallurgical Equipment
Manufacturing Co., Ltd. is a comprehensive manufacturer specialize in pipe hydrotester, pipe beveling machine,spiral welded pipe mill,, we can also offer used ERW pipe production line , used slitting line .With rich experience in this field ,our company has developed into a special enterprise integrating R&D, manufacturing, overhaul, transformation, installation and commissioning.



We can design and supply as per customer’s special requirements

We have a strong technical research and engineered team.According to the different requirements of different customers, we can tailor and design all kinds of spiral pipe production lines, pipe hydrotester, pipe beveling machine . Known in the industry as professional technical strength ,we have served clients from different countries so far.
Mentioned below are the factors that have enabled us to maintain our unique stature in this domain:
* Best quality
* Competitive prices
* After sales service
* Strong technical support
Professionalism to us means:
* We don’t believe in scarifying economics of time to achieve the economics of scale.
* Where continued improvements and not static solutions are at the helm.
* We strongly feel that dialogue and not propaganda is the means of communications between all.
* We believe in the importance of human skills also and not only the machines alone matter to us.
* Where most complex technological advancement and not only price competitions are taken as challenge.
Members in our team are :
* Engineers
* Post graduates in management
* Machine operators
* Fitters
* Welders who are mainly ITI graduates
* Design head
* Production heads
* Quality head
More Product


Pipe END beveling/chamfering machine

Type: double head/double end/double side/single head/single end
Function: chamfering/bevelling/deburring/edging etc.
Processing place: outside/inside/end face etc.
Processing metal: steel/stainless steel/aluminum/copper/brass/other ferrous metal/non-ferrous metal.
Material shape: round bar/round rod/round tube/round pipe/round tubing etc.
Operation: semi-automatic/automatic


Spiral welded pipe production line

This equipment we can design and produce as per customer"s special requirement.




Pipe roller conveying system

This equipment we can design and produce as per customer"s special requirement.
It"s used for conveying and support the finished pipe .
